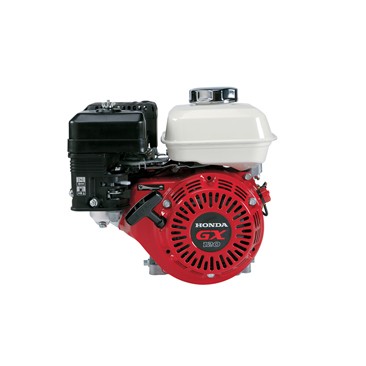

Honda GX120

Description

Professionals rely on the GX120 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

• The GX120 engine is frequently used by customers in commercial lawn and garden equipment.
• The GX120's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.
• A ball bearing-supported crankshaft and precision engineered components result in greater stability and lower vibration for you, no matter what the application.
• The GX120, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

COMMON APPLICATIONS
The GX120 engine is frequently used by customers in commercial lawn and garden equipment.

It's also used to power Construction/Industrial Equipment, as well as in Agricultural settings - including the powering of Water Pumps.

To accurately compare the GX120 with other Honda engines, click on the Compare Products icon next to the Share tab, in the top right of this page.

FUEL EFFICIENT, HIGH OUTPUT OPERATION
The GX120's Precision Camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency.

It draws on decades of Honda engineering with its OHV design, delivering increased efficiency and optimal power transfer for where you need it.

And the GX120 incorporates a high compression ratio for better fuel efficiency than its competitors.

SMOOTH OPERATOR
A ball bearing-supported crankshaft and precision engineered components result in greater stability and lower vibration for you, no matter what theapplication.

The use of lightweight, noise-reducing materials and a forged steel crankshaft & rigid crankcase results in an exceptionally quiet engine thatincorporates a large capacity, multi-chamber exhaust system.

And with a sophisticated air intake system, Oil Alert, Large fuel tank, Dual element air cleaner, Easily accessible spark plug and Cast Iron cylindersleeve, the GX120 will work as hard as you with minimal fuss - day in, day out.

3 YEAR WARRANTY
The GX120, just like the entire GX Engine range, is covered by an extensive Honda 3 Year Warranty.

That 3 years is relevant to both Domestic and Commercial applications, so you can rest assured with the knowledge that your GX120 is built to last.

And should there be any issues, a nationwide network of 450+ authorised Honda dealers are there to back you up with all your parts & servicerequirements.

PROVEN RELIABILITY
High quality materials, fit, and finish

EASY TO USE AND MAINTAIN
Simple throttle control
Large automotive type fuel cap
Dual oil drains and fills
Easy, convenient, heavy duty control box

EASY STARTING
Heavy duty recoil starter
Automatic mechanical de-compression system

EMISSIONS COMPLIANT
Models meet the strictest world standards, contact Honda for more info

No catalyst necessary

AVAILABLE OPTIONS
Gear reduction options

Spark arrester availabl

EXCEPTIONALLY QUIET
Large capacity, multi-chamber exhaust system

Reduced mechanical noise due to light weight, noise-reducing materials

Helical cut gears

SPECIFICATIONS
MODEL - GX120
TYPE - 4-stroke, overhead valve, single-cylinder, horizontal shaft
BORE & STROKE - 60 x 42 mm
DISPLACEMENT - 118 cm3
COMPRESSION RATIO - 8.5:1
NET POWER - 2.6kW (3.5HP) at 3,600 rpm
CONTINUOUS RATED POWER - 2.1kW (2.8HP) at 3,600 rpm
MAXIMUM NET TORQUE - 7.3 Nm at 2,500 rpm
IGNITION SYSTEM - Transistorised magneto ignition
STARTING SYSTEM - Recoil Starter
COOLING SYSTEM - Forced-Air
PTO SHAFT ROTATION - Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION ATRATED POWER - 1.0 L/h at 3,600 rpm
RECOMMENDED FUEL - Unleaded
LUBRICATION SYSTEM - Splash
RECOMMENDED OIL - 10W/30 API SG
OIL CAPACITY - 0.6l
FUEL TANK CAPACITY - 2.0l
DIMENSIONS - 305 x 341 x 318MM
DRY WEIGHT- 13.0kg
OTHER OPTIONS - 2:1 Reduction - 2:1 Reduction with Clutch - 6:1 Reduction
PRICE RANGE - $651.00 - $1207
