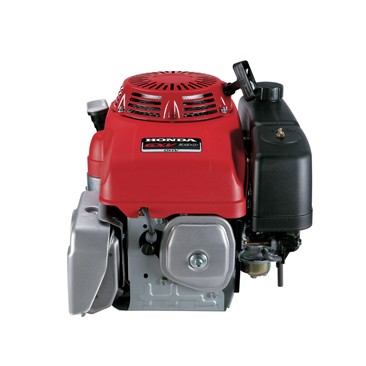

Honda GXV390

Description

The GXV390: Where quality and performance come standard.

• The Honda GXV390 is used throughout Australia to power commercial lawn and garden equipment, including Ride-on lawn mowers.
• The GXV390's precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency, and its Overhead Valve design supplies optimal power transfer.
• The GXV390 is exceptionally quiet for its size and output. This is in part due to its large capacity, multi-chamber exhaust system.
• Don't forget, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.

COMMON APPLICATIONS
The Honda GXV390 is used throughout Australia to power commercial lawn and garden equipment, including Ride-on lawn mowers.

As well as this, the GX390 is often used to power Construction/Industrial Equipment, as well as heavy-duty Agricultural equipment.

There's enough directional power in the GX390 to also power equipment such as Mini Loaders, and it's also used in Floor Cleaning applications.

FUEL EFFICIENT, HIGH OUTPUT OPERATION
The GXV390's precision camshaft design offers precise valve timing and optimal valve overlap for better fuel efficiency, and its Overhead Valved esign supplies optimal power transfer.

It also incorporates a high compression ratio for better fuel efficiency, which is handy for your pocket - and the environment.

Precision engineered components result in lower vibration, and the GXV390 features Dual balancer shafts and a Ball Bearing-supported crankshaftfor greater stability.

EXCEPTIONALLY QUIET
The GXV390 is exceptionally quiet for its size and output. This is in part due to its large capacity, multi-chamber exhaust system.

Its design incorporates a forged steel crankshaft and rigid crankcase, helical cut gears, and a sophisticated air intake system.

And it emits less mechanical noise due to lightweight, noise-reducing materials.

3 YEAR WARRANTY
Don't forget, all Honda GXV Engines are covered by a Honda 3 Year Domestic & Commercial Warranty.

The GXV390's simple operation is renowned, but if you need assistance or spare parts, Honda's got you covered.

With over 400 authorised Honda dealers around Australia, you'll never be on your own with a Honda engine.

OTHER FEATURES
Oil Alert, Cast iron cylinder sleeve, Dual element air cleaner, Large fuel tank, Large automotive type fuel cap, Easily accessible spark plug, and an Easy, convenient, heavy duty control box come standard.

PROVEN RELIABILITY
It's built with high quality materials, fit, and finish, and has an automatic mechanical de-compression system.

EMISSIONS COMPLIANT
Applicable models meet the strictest world standards, contact Honda for more info
No catalyst necessary

AVAILABLE OPTIONS
Electric start
Spark arrester available
Charge coils with multiple output options available

SPECIFICATIONS

MODEL - GXV390
TYPE - 4-stroke, overhead valve, single-cylinder, Vertical Shaft
BORE & STROKE - 88 x 64 mm
DISPLACEMENT - 389 cm3
COMPRESSION RATIO - 7.7:1
NET POWER - 7.6kW (10.2HP) at 3,600 rpm
CONTINUOUS RATED POWER - 5.2kW (7.0HP) at 3000 rpm
MAXIMUM NET TORQUE - 24.2 Nm at 2,500
IGNITION SYSTEM - Transistorised magneto ignition
STARTING SYSTEM - Recoil (Electric Start Optional)
COOLING SYSTEM - Forced-Air
PTO SHAFT ROTATION - Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER - 2.5 L/h at 3,000 rpm
RECOMMENDED FUEL - Unleaded
LUBRICATION SYSTEM - Pressure and splash
RECOMMENDED OIL - 10W/30 API SG
OIL CAPACITY - 1.1l
FUEL TANK CAPACITY - 2.1l
DIMENSIONS - 430 x 385 x 410 mm
DRY WEIGHT - 33.0kg
PRICE RANGE - $1000 - $1052
